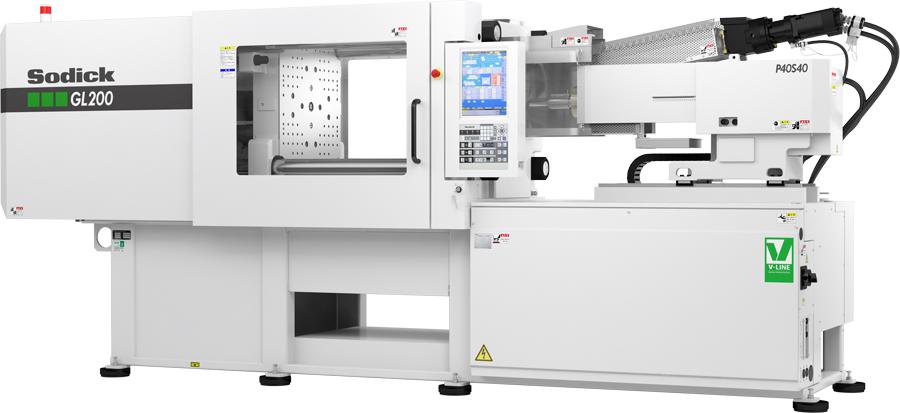

Sodick Ultra Precision Injection Molder

Sodick's Ultra Precision injection molding machine is a pinnacle of precision engineering. With a robust frame for stability and advanced injection control, it ensures precise and repeatable molding. Its versatile mold handling capabilities accommodate various sizes and types, making it ideal for industries like medical and automotive. Equipped with advanced monitoring systems, it guarantees high-quality production. The Ultra Precision series sets a new standard for excellence in injection molding.

Sodicks Ultra Precision Injection Molding Machines are numerous sizes and capacities in both electric/hydraulic and fully electric.

Standard Features:

  • V Line Two Stage Plunger Injection

  • Direct Hybrid Clamping Mechanism

  • Linear Motor Driven Valve

  • High Speed & Pressure Injection/Injection Compression System

  • Micro Molding Options

  • Easy to use Sodick Control

Technical Specification

Specifications shown are for MS200G2

  • Clamping System: Double Toggle

  • Max Clamping Force (N): 1960

  • Tie Bar Distance WxL (mm): 560x560

  • Platen Dimensions WxL (mm): 720x720

  • Min Mold/Max Mold Thickness (mm): 250/550

  • Screw Diameter (mm): 40/50

  • Plunger Diameter (mm): 40/50

  • Max Injection Pressure (MPa) 275
